Syktyvkar Plywood Mill ltd. is one of the leading manufactures of woodbased panels plywood and chipboard. Great experience together with modern manufacturing facilities and the latest wood processing equipment guarantee producing of high standard products. The best selected wood from taiga and birch groves are used in our production, slow-grown Northern timber gives special strength to the panel. Syktyvkar Plywood Mill offers users a wide range of high-quality plywood products popular in all-around applications. A broad spectrum of panel thickness and film decors allow application almost in any industry. Among our main customers there are leading building and furniture manufactures of Russia, Europe and North America.
Equipment: Rauma-Repola, Raute Wood Finland, Steinemann Switzerland, Dieffenbaher Germany.
The annual production capacity of the enterprise amounts more than 220 000 m3 of plywood and more then 300 000 m3 of chipboard.
The personnel is about 1500 employees.Syktyvkar Plywood Mill occupies one of the leading positions among manufacturers of woodbased panels during more than 25 years.

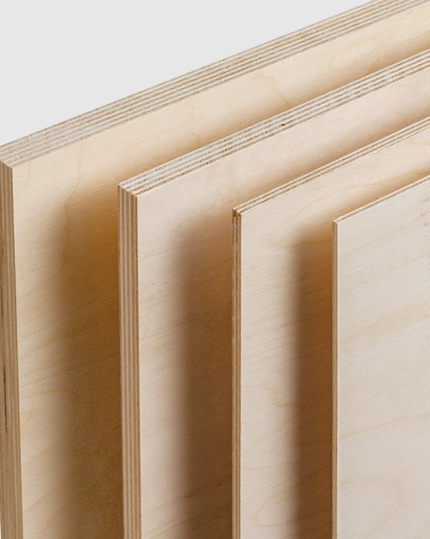

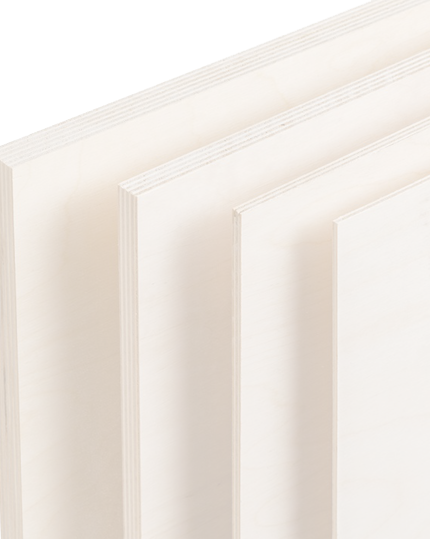

Birch SyPly is an ideal material for construction and furniture manufacture. The beautiful structure of natural wood gives a special value in interior and exterior decoration. High physicomechanical parameters of our plywood, excellent durability, wear resistance and surface hardness is really appreciated at any industry.
Excellent strength, stiffness, wear and impact resistance, smooth and durable surface characterize birch plywood. These properties are highly appreciated in building, construction, vehicle industry, carriage building and other industries where special strength of a material is required.
Warm, light-colored appearance with excellent surface quality makes birch plywood an excellent choice for furniture, an interior and exterrior furnish.
Why choose syktyvkar plywood?
Application
| Specification | According to TU 5512-001-44769167-02 |
|---|---|
Dimensions, mm |
2440 x 1220, 1220 x 2440, 2500 x 1250, 1250 x 2500 |
| Thickness, mm | 4.0, 6.0, 6.5, 8.0, 9.0, 10.0, 12.0, 15.0, 18.0, 21.0, 24.0, 27.0, 28.0, 30.0, 32.0, 35.0 |
| Length (width) tolerance | +/- 2mm |
| Grade of face veneer | B, S, BB, CP, C |
| Number of plies | from 3 up to 25 (depending on thickness) |
| Surface quality | sanded two sides S2, sanded one side S1 (except C-grade) |
| Formaldehyde emission class | E1 (up to 8 mg per 100 g of bone-dry plywood) |
Water resistance |
MR (moisture resistant) or WBP (weather and boil-proof) marked |
| Moisture content | 5-12 % |
| Ultimate shearing strength | 1.5 MPa |
| Certification | DIN 68705-3 (WBP only), EN 13986, EN 636-3, Russian standard GOST, Russian hygienic certificate |

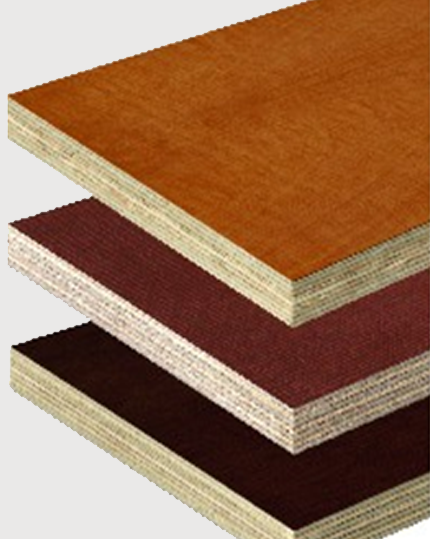

Syktyvkar film-faced plywood finds application in conditions of high temperature drop, influence of moisture and detergent cleaning. It has lightweight, resistant to corrosion attack, easily combined with other materials and simple in processing. Filmfacing of plywood and edge treatment by waterproof paint ensure the water-and wear-resistance. Northern wood provides special durability of the panel, coating with high-quality import films ensures hardness and damage resistance. These properties make our plywood irreplaceable in conditions of the open environment.
Film-facing improves the panel's resistance to natural and chemical conditions. Anti-slip, wear-resistant and easily handled surface makes this plywood ideal for applications demanding high wear resistance such as various composite structures, floors and sidewalls of trucks, railway wagons, warehouses etc. The surface is hygienic and resistant to strong detergents, what is important for farming constructions and storage of a food products.
Why choose Syktyvkar plywood?
Application
| Specification | According to TU 5512-002-44769167-98 |
|---|---|
Dimensions, mm |
2440 x 1220, 1220 x 2440, 2500 x 1250, 1250 x 2500 |
| Thickness, mm | 6.5, 9.0, 12.0, 15.0, 18.0, 21.0, 24.0, 27.0, 30.0 |
| Tolerance on length (width) | +/- 2mm |
| Grade of face veneer | 1, 1/2, 2 |
| Number of plies | from 5 up to 21 depending on thickness |
| Kind of a surface | smooth / imprinted |
| Surface color | dark brown (other colours on request) |
Edges processing |
by waterproof acrylic paint |
| Basis | birch plywood |
| Formaldehyde emission class | E1 (up to 8 mg per 100g of bone dry plywood) |
| Water resistance | WBP mark |
| Moisture content, max | 5-12 % |
| Ultimate shearing strength | not less 1.5 MPa (birch base), not less 1.0 MPa (KOMBI base) |
| Ultimate tensile strength | not less 40 MPa |
| Ultimate creasing strength | not less 60 MPa |
| Certification | DIN 68705-3, EN 13986, EN 636-3, Russian hygienic certificate (WBP only), Russian standard GOST |
Syktyvkar film-faced plywood finds application in conditions of high temperature drop, influence of moisture and detergent cleaning. It has lightweight, resistant to corrosion attack, easily combined with other materials and simple in processing. Filmfacing of plywood and edge treatment by waterproof paint ensure the water-and wear-resistance.
Northern wood provides special durability of the panel, coating with high-quality
import films ensures hardness and damage resistance. These properties make our plywood irreplaceable in conditions of the open environment.

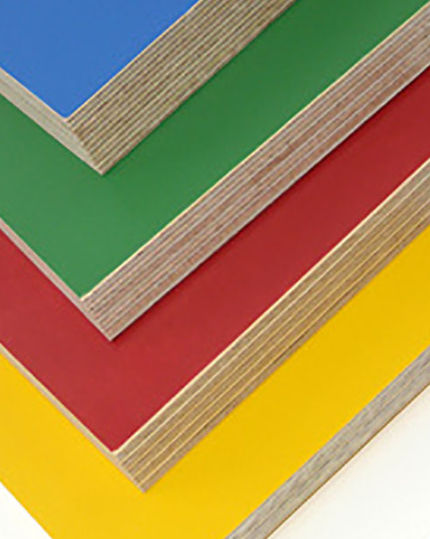

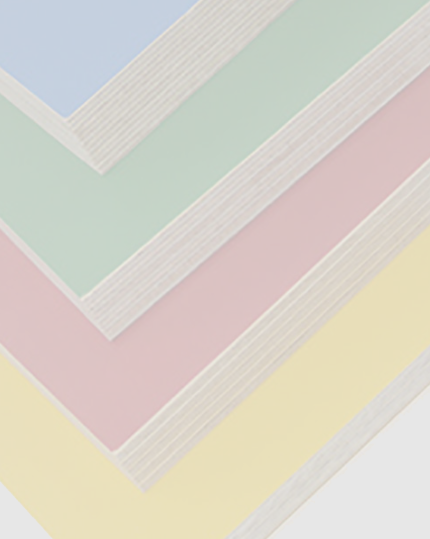

Film-faced panels` surface is high water- and wear resistant. These properties provide outdoor application: children playgrounds, stadiums, show constructions and fencings. Ecological safety, moisture tolerance and resistance to detergents of the film-faced plywood avail application in packing manufacture, producing of shopping outfit (shopboards, stands). The wide range of different colors make the film-faced plywood popular in furniture manufacture (children and kitchen furniture), interior decoration, music halls and gyms, boarding of transport vehicles (busses, trailers, campers).
Why choose Syktyvkar plywood?
Application
| Specification | According to TU 5512-002-44769167-98 |
|---|---|
Dimensions, mm |
2440 x 1220, 1220 x 2440, 2500 x 1250, 1250 x 2500 |
| Thickness, mm | 6.5, 9.0, 12.0, 15.0, 18.0, 21.0, 24.0, 27.0, 30.0 |
| Tolerance on length (width) | +/- 2mm |
| Grade of face veneer | 1, 1/2, 2 |
| Number of plies | from 5 up to 21 depending on thickness | Surface color | in assortment |
Edges processing |
by waterproof acrylic paint |
| Basis | birch plywood |
| Formaldehyde emission class | E1 (up to 8 mg per 100g of bone dry plywood) |
| Water resistance | WBP mark |
| Moisture content, max | 5-12 % |
| Ultimate shearing strength | not less 1.5 MPa (birch base), not less 1.0 MPa (KOMBI base) |
| Ultimate tensile strength | not less 40 MPa |
| Ultimate creasing strength | not less 60 MPa |
| Certification | DIN 68705-3, EN 13986, EN 636-3, Russian hygienic certificate (WBP only), Russian standard GOST |
24 April 2018

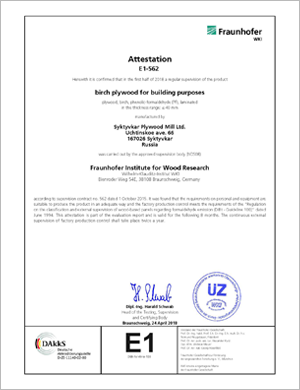

E1-Attestation of birch plywood SyPly (UF) WKI-653-1
17 October 2018

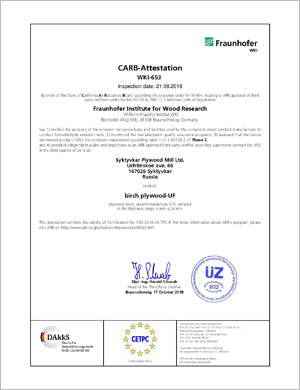

CARB-Attestation (California Air Resources Board) to the certificate No. 653 for birch urea-formaldehyde plywood
16 May 2018
CE-Certification sanded combinated plywood 0765-CPR-1207
23 May 2018

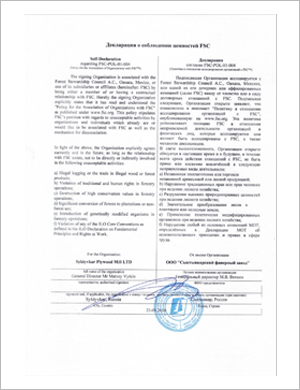

Self-Declaration regarding FSC
15 June 2018

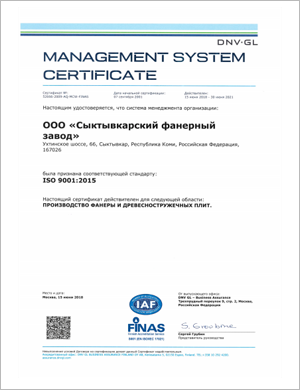

Certificate of conformity of the quality system to the standard management systems ISO 9001:2015
16 June 2015

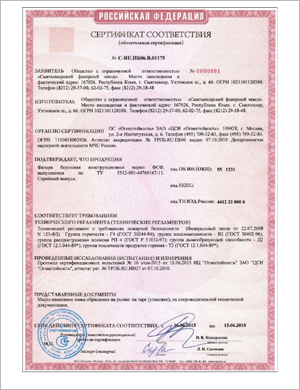

Fire certificates of conformity for FFAP and birch laminated plywood
Phones:
(8212) 29-37-00 secretary,
(8212) 29-38-48 secretary fax,
(8212) 29-37-72 plywood sales,
(8212) 29-37-77 chipboard sales
66, Ukhtinskoe ave.
Syktyvkar, 167026
Komi rep., Russia
